Lattice Unit Generator

Endpoint: https://studiobitonti.appspot.com/latticeUnit

The lattice unit function generates a single lattice structure inside a cube. Using input parameters such as chamfers, blend, connection point, etc. It outputs a vector file of the lattice module.

Input:

Case: Is an integer value between 0 - 7,  defining different type of lattice units.
Chamfer: Is a float value between 0 to 0.5 defining the angle of chamfer of the corners.
Center Chamfer: Is a float value between 0 to 0.5 defining the angle of chamfer from the center.
Bendln: Is a float value between 0 and 1, defining angle bend of the lines.
cBendln:  Is a float value between 0 and 1,defining the central bend of the lines.
Connect Pt:  Is a float value between 0 and 1, defining the connection points.
Filename: Name of the resultant file for the lattice unit.
T: [YOUR SECRET TOKEN]

Output:

A list of result files in storage.

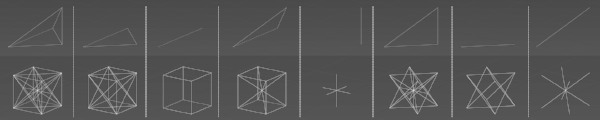

From Left to Right:  Case0- Case 7

From Left to Right: Case0- Case 7

Example:

Required:
{
   "case": 3,
   "chamfer": 0.2,
   "centerChamfer": 0.3,
   "bendIn": 0.7,
   "cBendIn": 0.3,
   "connectPt": 0.8,
   "filename": "Example_LatticeUnit1.obj",
   "t": [YOUR SECRET TOKEN]
}


Full request URL:

https://studiobitonti.appspot.com/latticeUnit


Response:

    ["Example_LatticeUnit.obj"]

This file can be downloaded at

https://studiobitonti.appspot.com/storage/download?name=Example_LatticeUnit.obj&t=[YOUR SECRET TOKEN]

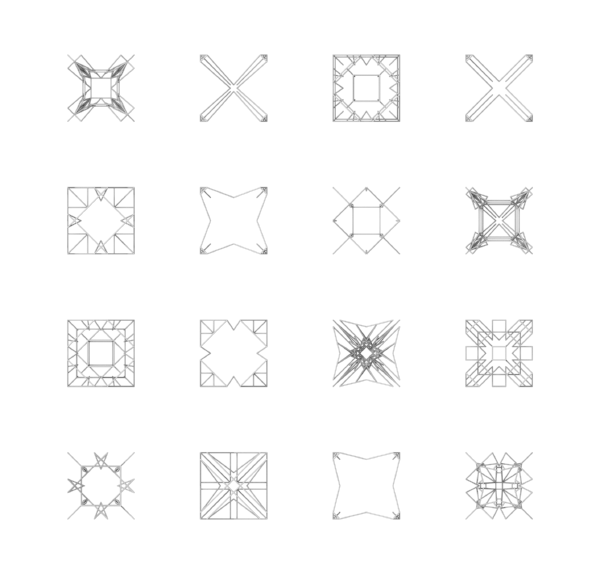

Examples of different lattice units.

Axonometric View

Axonometric View
